Alpha MIDI (requires EigenD 1.4.7 or later)


This is a custom setup for the Eigenharp Alpha that creates two MIDI outputs, one for the main playing keys and another one for the percussion keys. The main keyboard has five keys configured as three-dimensional MIDI CC controllers where each axis sends out data to a dedicated CC number. Through the Routing Matrix, the MIDI mappings can be easily configured and it comes with a number of useful default mappings.

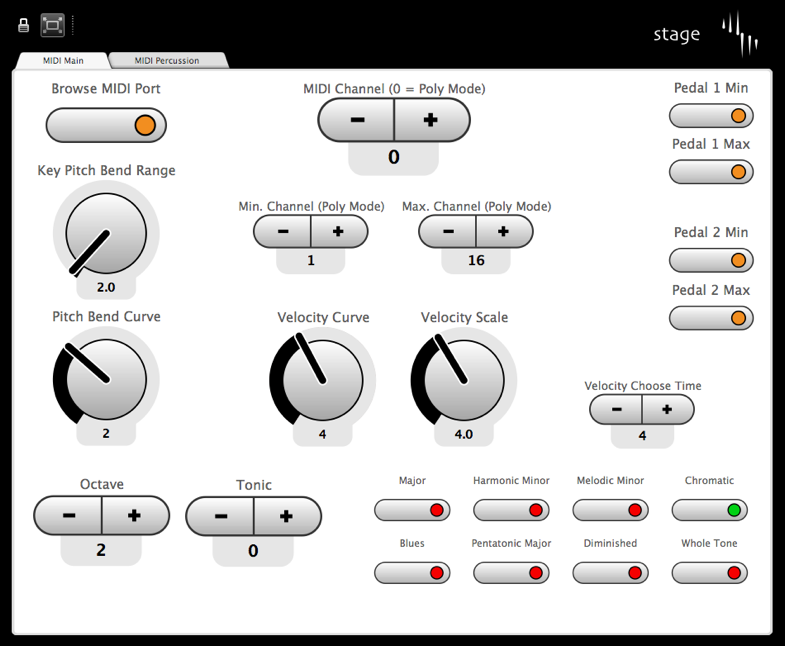

The Stage tab allows control over the scale, tonic, octave, MIDI channels, velocity control, pitch bend and pedal calibration.

image:Alpha MIDI Stage.png

You can download the setup from here:

link:Alpha MIDI.zip

After unzipping the setup, you have to move the file 'alpha 4 ~ MIDI' to the setups directory that corresponds to the version of EigenD that you're running. For instance, if you're using EigenD 1.4.7, the directory will be '/Users/youruser/Library/Eigenlabs/1.4.7-testing/setups' on MacOSX and 'C:\Users\youruser\Documents\Eigenlabs\1.4.7-testing\setups' on Windows.

If you're interested in how this setup was built using Belcanto, you can download the scripts from Alpha MIDI From Scratch.
